Process images with a point-spread function

Use spacr.point_spread from Python to convolve an image with a point-spread function (PSF), or to deconvolve it with Richardson–Lucy. Prepare a two-dimensional image or three-dimensional volume and a measured PSF sampled at the same pixel or voxel spacing. Supply intensity images; keep object-label masks separate.

Use the desktop controls

In Make Masks, open Image enhancement and select Convolve (blur) or Deconvolve (Richardson–Lucy) under Point spread function. Choose your Objective, or use Infer from images… to read the current image’s optical metadata. With no image open, the button asks you to choose a TIFF. The summary shows pixel spacing, Gaussian width and where those values came from.

Open PSF optics and kernel to inspect the remaining controls. Camera sets the camera pixel pitch; Fluorophore sets the emission wavelength. Magnification, numerical aperture, immersion refractive index, wavelength, pixel spacing and Gaussian widths remain editable. Labels identify metadata, objective-table values, calculations, defaults and values you entered. Review these after using Infer from images…, which repopulates the optics and recalculates Gaussian widths.

Without image-specific information, the starting approximation uses a 20×/0.75 air objective, a 6.5 µm camera pixel and 520 nm emission. It gives 0.325 µm image pixels and approximately 0.354 µm Gaussian FWHM. Pixel spacing is camera pixel pitch divided by magnification; the lateral Gaussian FWHM is approximated by 0.51 × emission wavelength / numerical aperture. These defaults permit a calculation; they are not measured calibration or proof of your microscope’s resolution. Check them against the acquisition.

In the same fold, choose Measured kernel (TIFF/NPY) and load your calibrated two-dimensional PSF, or keep Gaussian approximation. For a measured kernel, enter its pixel spacing too; it must match the image. Neither mode silently resamples a mismatched kernel.

Wait for the kernel to load, then use Compare to inspect its effect. Set Deconvolution iterations when using Richardson–Lucy and choose Apply to use the result for detection. Start with a modest iteration count and inspect noise as well as object boundaries. Reload rereads a kernel file after you change it. Off disables PSF processing.

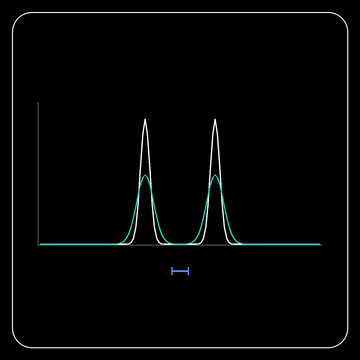

White shows a fixed input profile; teal shows the convolved result. The blue bar indicates the Gaussian kernel’s full width at half maximum. Increasing that width spreads the signal and reduces peak intensity while preserving the integrated intensity. This illustrates convolution with a Gaussian approximation. For your microscope, enter measured calibration values and inspect the resulting image with Compare.

Choose the intensities used by Measure

In Measure, open Image Preprocessing → Image Deconvolution (PSF) and set psf_measurement_source. Keep original for the standard measurement intensities, including Measure’s normal rescaling and preprocessing, without additional PSF processing. Choose processed to measure intensities after convolution or deconvolution, then configure psf_operation, the kernel source and its calibration.

Measure does not infer optics from image metadata: enter the calibration explicitly. For a two-dimensional field, enter image sampling and Gaussian widths in [Y, X] order. For a volume, use [Z, Y, X] and a matching three-dimensional kernel. Volume sampling must agree with Measure’s voxel calibration or anisotropy settings. A measured kernel must have the same sampling as the image. Use a kernel appropriate for every selected intensity channel.

Run Measure and inspect the resulting object-feature tables in measurements.db. PSF processing changes the intensity stream used for quantitative features; source files and exported crops retain their usual behavior. The intensity_rescale table records the selected source and PSF processing details. Keep the database with the settings and kernel file.

To compare different kernels or original and processed measurements, use separate projects or output databases. An existing database cannot mix measurements made with different PSF configurations. Restore the recorded configuration when resuming a run. See spacr.psf_measurement.prepare_measurement_psf() for the Python settings contract.

Load the image and PSF

The example below reads a single-channel image and a measured PSF from TIFF files. Replace the example spacing of 0.11 µm with your calibrated Y and X pixel spacing. A three-dimensional input uses Z, Y and X spacing in that order. The PSF must have odd spatial dimensions, a central origin and nonnegative signal after background removal.

import json
from pathlib import Path
import tifffile
from spacr.point_spread import load_psf, apply_psf

spacing = (0.11, 0.11)
image = tifffile.imread("cell_channel.tif")
kernel = load_psf("measured_psf.tif", sampling_um=spacing)

Choose the operation and save the result

Set operation="deconvolve" to perform Richardson–Lucy deconvolution. Start with a modest iteration count and compare the result with the input; more iterations can amplify noise. operation="convolve" instead blurs the image with the PSF. It does not use the iteration count.

result = apply_psf(
    image,
    kernel,
    operation="deconvolve",
    image_sampling_um=spacing,
    iterations=10,
)
tifffile.imwrite("cell_channel_deconvolved.tif", result.image)
Path("cell_channel_deconvolved.json").write_text(
    json.dumps(result.provenance, indent=2), encoding="utf-8"
)

The output preserves the image shape and uses float32 values in the original intensity units. Inspect its range before converting it to an integer image. Keep the JSON record with the result; it contains the kernel identity, sampling and processing settings.

For multichannel images, set channel_axis explicitly: -1 selects a final channel dimension, while 0 selects a first channel dimension. Each intensity channel is processed independently. Image and PSF sampling must match; the function rejects mismatched spacing.

Use a calculated approximation

If your workflow calls for a Gaussian approximation, construct it with spacr.point_spread.gaussian_psf(). Supply the full width at half maximum in micrometres and the image spacing. These are example values to replace with the values appropriate to your analysis:

from spacr.point_spread import gaussian_psf

kernel = gaussian_psf(
    fwhm_um=(0.30, 0.30), sampling_um=spacing, ndim=2
)

Pass this kernel to apply_psf as above. A Gaussian kernel is an approximation; retain that distinction when comparing it with a measured PSF. See spacr.point_spread.apply_psf() for cancellation, progress callbacks and the complete parameter reference.
